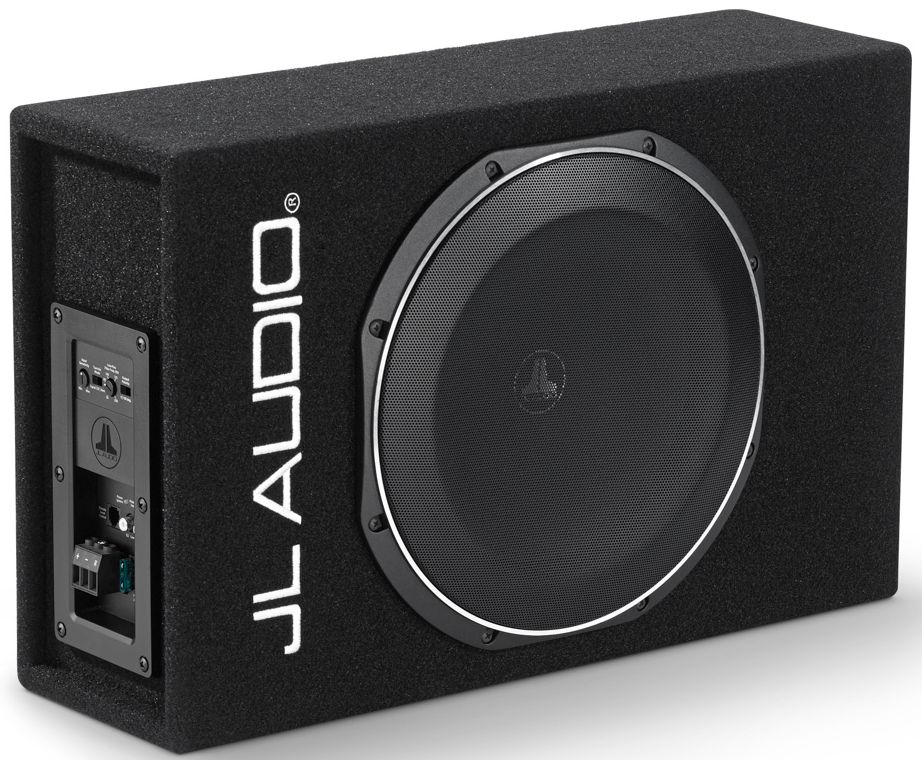

JL Audio® Single 12TW1 PowerWedge+™ Subwoofer System

Model #: ACS112LG-TW1

At a Glance

In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver.

WarningProposition 65 Warning for California Residents
JL Audio® Single 12TW1 PowerWedge+™ Subwoofer System

Construction

Enclosure TypeSealed

Specifications

Frequency Response50 Hz - 200 Hz

Misc. Specs

ColorBlack
Manufacturer Warranty2 Year
Width (in.)21
Color Finish NameBlack
Depth (in.)6.625
Height (in.)13.5
RMS Power Handling (Watts)400
Mounting Hardware IncludedNo
Subwoofer Size12"
Satellite Radio ReadyNo
Water ResistantNo
Product Weight (lbs.)29.2

JL Audio® Single 12TW1 PowerWedge+™ Subwoofer System

Model #: ACS112LG-TW1
Call for Best Price

At a Glance

In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver.

People also viewed:

Get to know this product.

By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.

Harnessing the performance and insanely small box requirements of the TW1 subwoofer driver, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 6.625 in. (168 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 driver and has been fine-tuned through extensive real-world listening.

Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.

Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.

Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.

Construction: CNC-Cut High-Grade MDF

Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 O)

Enclosure and Subwoofer built in USA with global components

Continuous Power Handling (RMS): Built-in amplifier 400 W @ 0.25 O

System Nominal Impedance: 0.25 O

Input Voltage Range @ RCA Inputs: 70 mV - 1.40 V RMS

Input Voltage Range @ High-Level Inputs: 280 mV - 5.4 V RMS

Recommended Copper Power / Ground Wire Gauge: 8 AWG wire

Fuse Rating: 30 A (ATO or ATC)

Enclosure Type: Sealed

Finish: Black carpet

Grille Included: Black Steel Mesh

Signal Processing

Filter Mode(s): Low-Pass only

Filter Slope(s): 12 dB/octave

Filter Frequency Range: 50 Hz - 200 Hz

Output Polarity Switch: Yes

Remote Subwoofer Level Control: Optional (RBC-1)

Useful Documents
Specifications

Construction

Enclosure Type:Sealed

Specifications

Frequency Response:50 Hz - 200 Hz

Misc. Specs

ColorBlack
Manufacturer Warranty2 Year
Width (in.)21
Color Finish NameBlack
Depth (in.)6.625
Height (in.)13.5
RMS Power Handling (Watts)400
Mounting Hardware IncludedNo
Subwoofer Size12"
Satellite Radio ReadyNo
Water ResistantNo
Product Weight (lbs.)29.2
