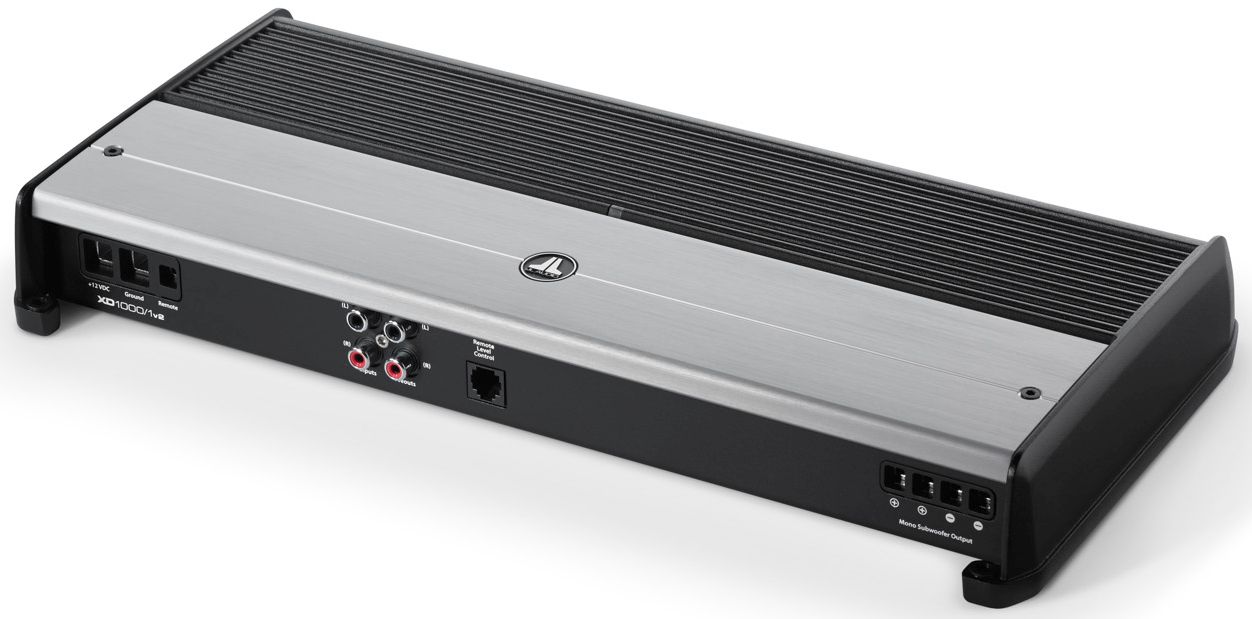

JL Audio® Class D Monoblock Subwoofer Amplifier

Product Overview

Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 O / 600 W x 1 @ 4 O - 14.4V

This potent monoblock subwoofer amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The XD1000/1v2 is capable of delivering 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.

Designed specifically for subwoofer applications, the XD1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). The XD1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Rated Continuous (RMS) Power @ 14.4 V

@ 4 O: 600 W RMS x 1

@ 3 O: 800 W RMS x 1

@ 2 O: 1000 W RMS x 1
