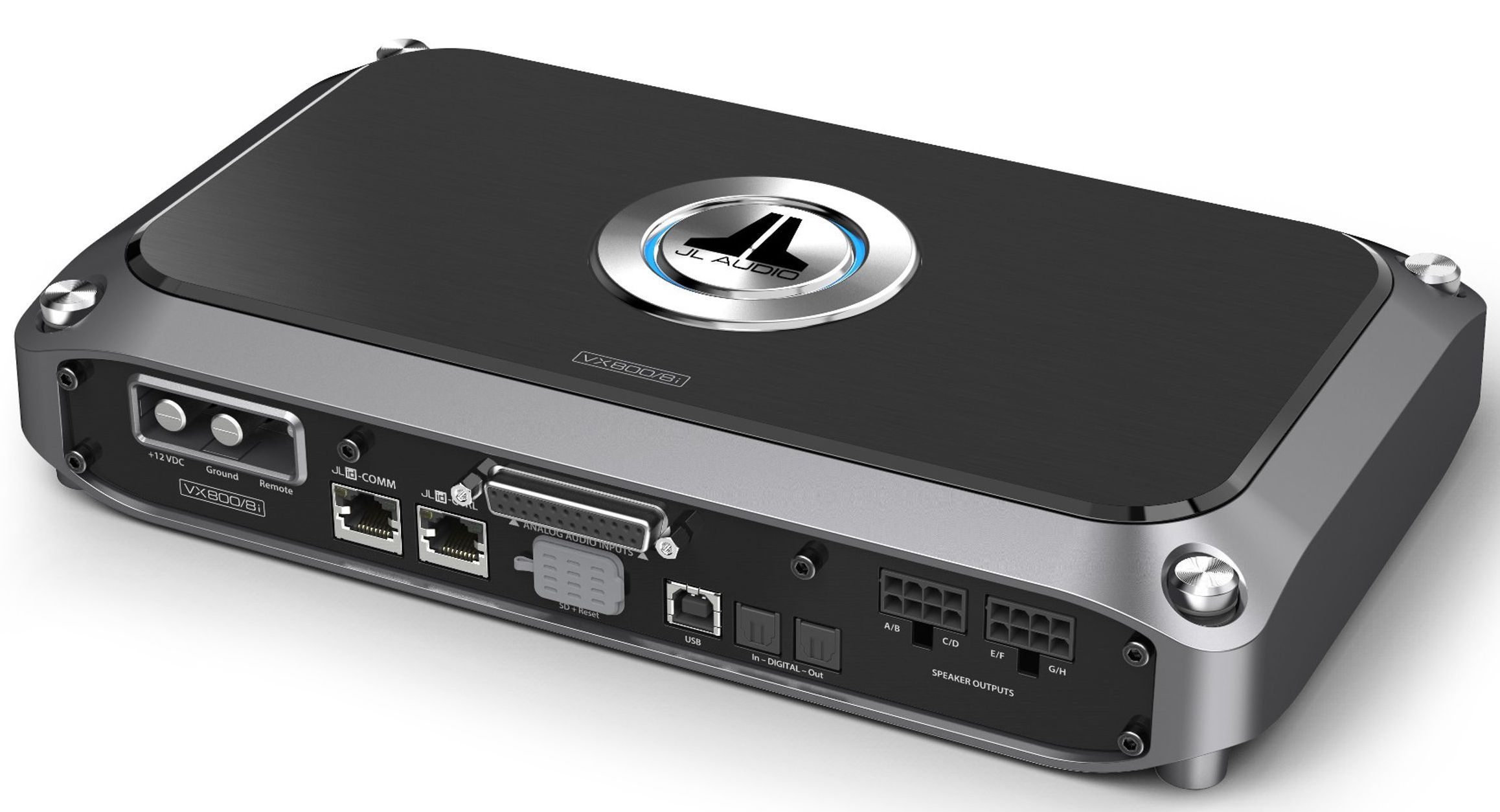

JL Audio® 8 Ch 800 W Class D Full-Range Amplifier with Integrated DSP


Model #:

VX800/8i

JL Audio® 8 Ch 800 W Class D Full-Range Amplifier with Integrated DSP-0
JL Audio® 8 Ch 800 W Class D Full-Range Amplifier with Integrated DSP-1
JL Audio® 8 Ch 800 W Class D Full-Range Amplifier with Integrated DSP-2
JL Audio® 8 Ch 800 W Class D Full-Range Amplifier with Integrated DSP-3
JL Audio® 8 Ch 800 W Class D Full-Range Amplifier with Integrated DSP-4

At a Glance

Product Dimensions 2.12"h x 11.32"w x 6.62"d

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.Read More

Available in Store Only
$1,799.99

Get to know this product.

Product Overview

Product Overview

8-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 8 @ 2 O / 75 W x 8 @ 4 O - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

With our second-generation NexD2™ technology, the VX800/8i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms to deliver a powerful 200 W x 4.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harnesses (2), 6 ft A/B USB Cable

Frequency Response: 12 Hz - 24 kHz (+0, -1dB)

THD+N @ Rated Power: <1% @ 2 O per Ch.

Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS

Useful Documents
Specifications

General Specs

Amplifier Channels8
Amplifier ClassClass D
RMS Power Handling (Watts)200
Impedance2 - 4 Ohms
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
Digital InputNo
Speaker Level InputNo
Number Of Outputs8
Amplifier Output (Watts)800
Bluetooth CapableNo
Water ResistantNo
Shallow MountNo
ColorBlack
Width (in.)11.32
Depth (in.)6.62
Height (in.)2.12
