JL Audio® 750 W Monoblock Class D Wide-Range Amplifier

At a Glance

This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 O, giving you the highest degree of flexibility in designing your subwoofer system.

Proposition 65 Warning for California Residents

Monoblock Class D Wide-Range Amplifier, 750 W x 1 @ 1.5-4 O

This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 O, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

While targeted primarily to subwoofer applications, the HD750/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

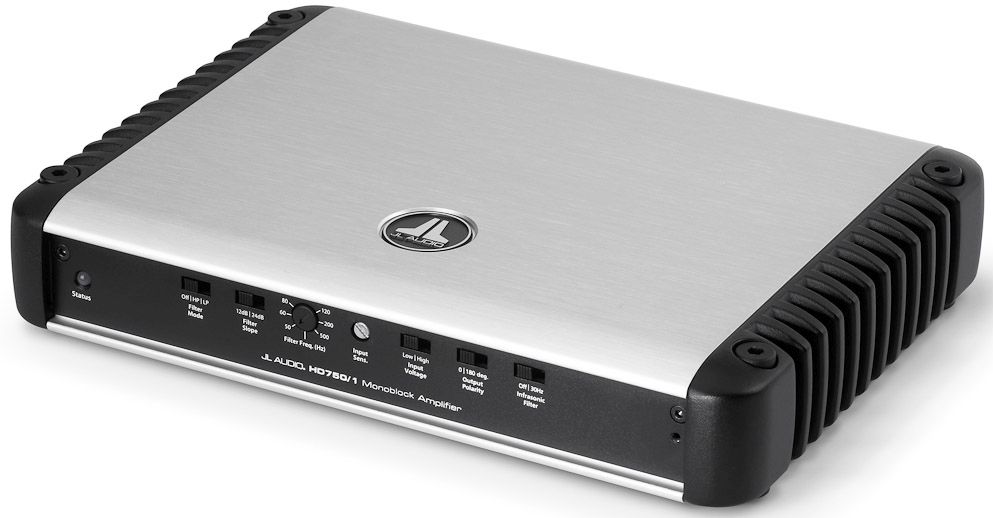

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Frequency Response: 6 Hz - 8 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power: >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
