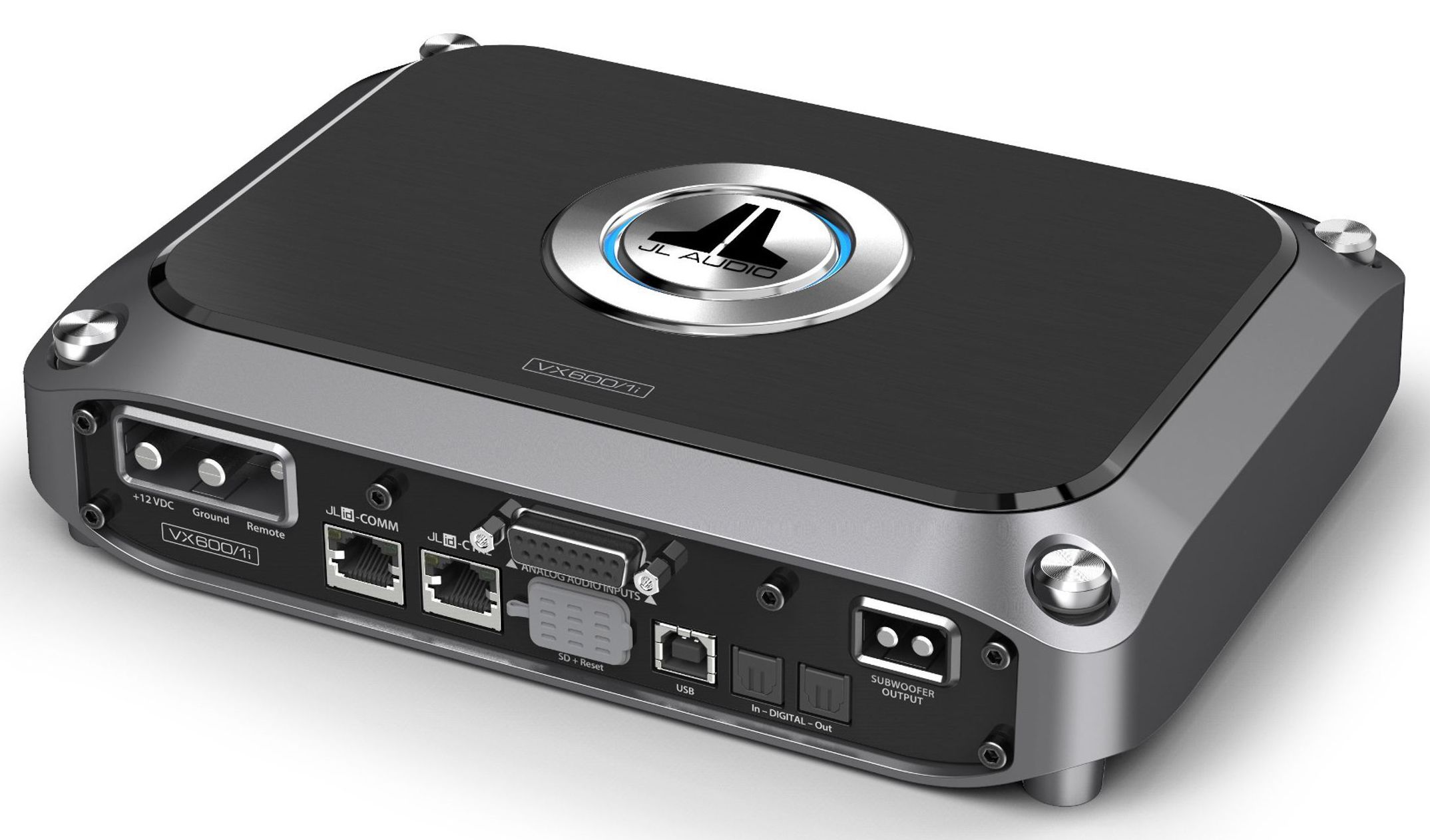

JL Audio® 600 W Monoblock Class D Amplifier with Integrated DSP


Model #:

VX600/1i

JL Audio® 600 W Monoblock Class D Amplifier with Integrated DSP-0
JL Audio® 600 W Monoblock Class D Amplifier with Integrated DSP-1
JL Audio® 600 W Monoblock Class D Amplifier with Integrated DSP-2
JL Audio® 600 W Monoblock Class D Amplifier with Integrated DSP-3
JL Audio® 600 W Monoblock Class D Amplifier with Integrated DSP-4
JL Audio® 600 W Monoblock Class D Amplifier with Integrated DSP-5

At a Glance

Product Dimensions 2.12"h x 9.02"w x 6.62"d

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets.Read More

Available in Store Only
$999.99

Get to know this product.

Product Overview

Product Overview

Monoblock Class D Subwoofer Amplifier with Integrated DSP, 600 W x 1 @ 2 O / 400 W x 1 @ 4 O - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

The VX600/1i monoblock subwoofer amplifier outputs up to 400 watts into 4 ohms, or a staggering 600 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Frequency Response: 12 Hz - 500 Hz (+0, -1dB)

THD+N @ Rated Power: <1% @ 2 O per Ch.

Min.Copper Power / Ground Wire Gauge: 4 AWG wire

Useful Documents
Specifications

General Specs

Amplifier ChannelsMono Block
Amplifier ClassClass D
RMS Power Handling (Watts)600
Impedance2 - 4 Ohms
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
Digital InputYes
Speaker Level InputNo
Number Of Outputs2
Amplifier Output (Watts)600
Bluetooth CapableNo
Water ResistantNo
Shallow MountNo
ColorBlack
Width (in.)9.02
Depth (in.)6.62
Height (in.)2.12
Product Weight (lbs.)5
Manufacturer Warranty2 Years
