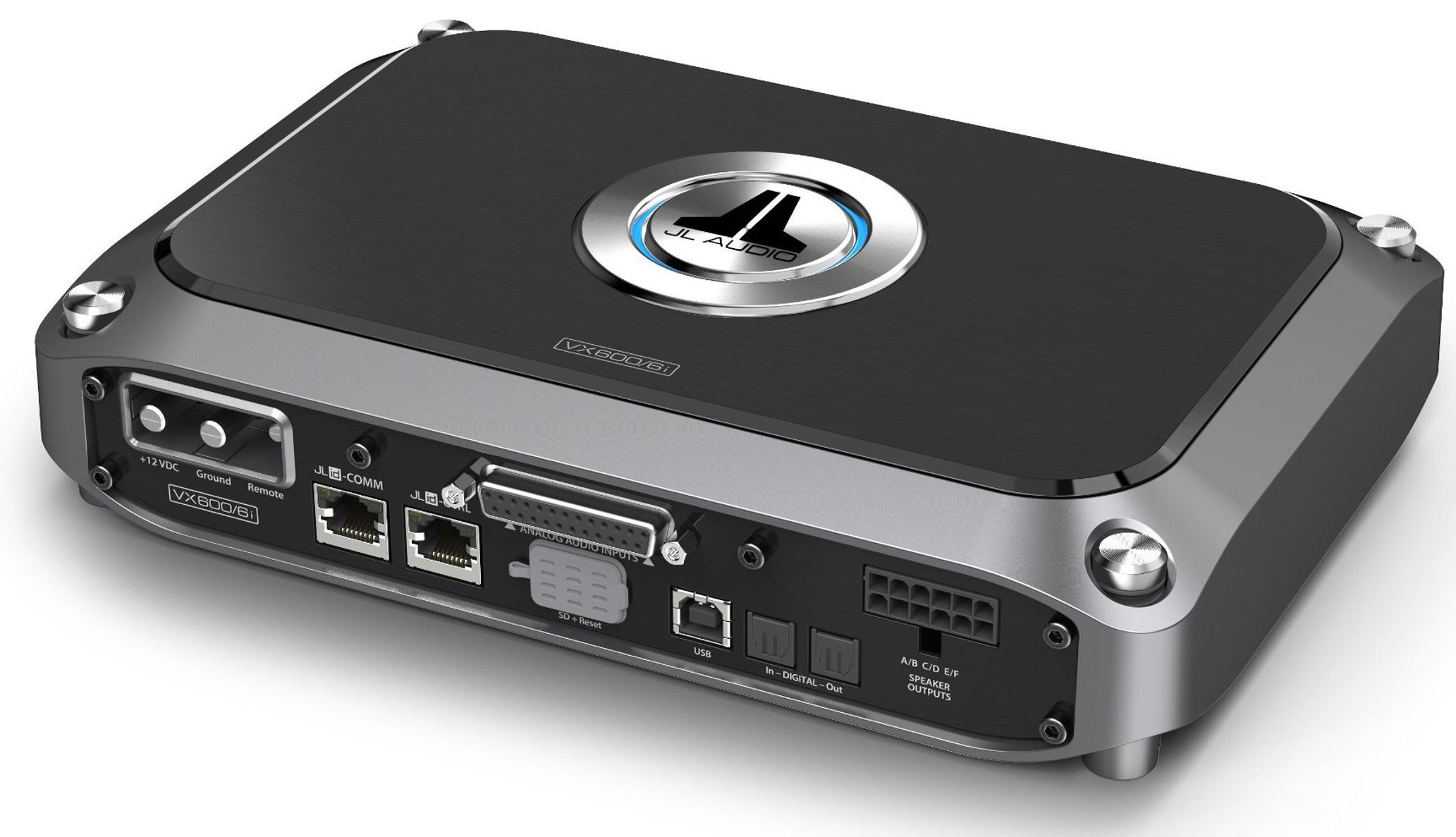

JL Audio® 6 Ch 600 W Class D Full-Range Amplifier with Integrated DSP

Model #: VX600/6i
460308
JL Audio
At a Glance

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Call for Best Price
$99,999.00Save $NaN

Get to know this product.

6-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 6 @ 2 O / 75 W x 6 @ 4 O - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

With our second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable

  • Frequency Response: 12 Hz - 24 kHz (+0, -1dB)
  • THD+N @ Rated Power: <1% @ 2 O per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
Specifications

Misc. Specs

ColorBlack
Depth (in.)6.62
Width (in.)9.81
Height (in.)2.12
Amplifier ClassClass D
Amplifier Output (Watts)600
Bluetooth CapableNo
Amplifier Channels6
Impedance2 - 4 Ohms
RMS Power Handling (Watts)200
Water ResistantNo
Digital InputYes
Shallow MountNo
Speaker Level InputNo
Number Of Outputs2
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
Product Weight5.55
