JL Audio® 5.25" Convertible Component Woofer

Model #: C3-525cw

At a Glance

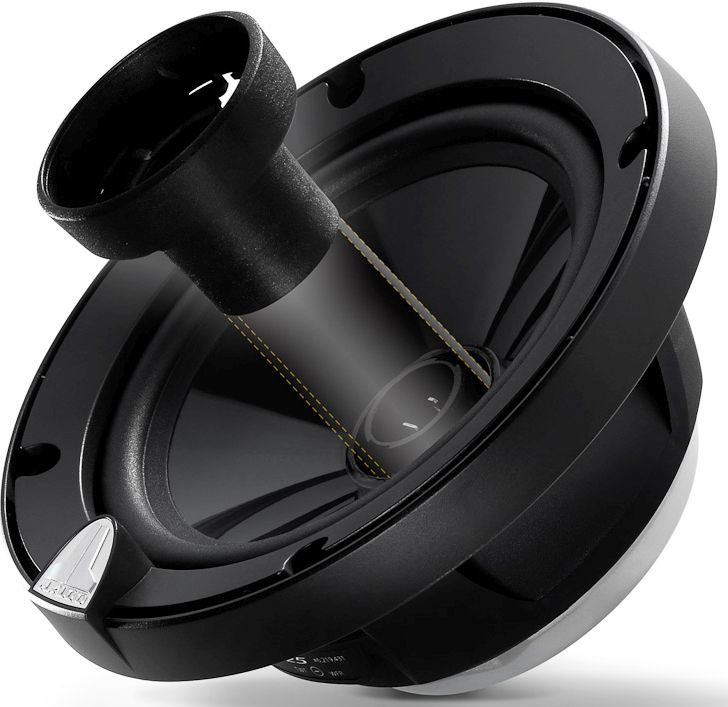

The C3-525cw is a 5.25-inch (130 mm) component woofer capable of accurate reproduction between 53 Hz and 7 kHz. It features a mineral-filled polypropylene cone and an injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

WarningProposition 65 Warning for California Residents
JL Audio® 5.25" Convertible Component Woofer

Construction

Woofer CompositionMineral Filled Polypropylene

Specifications

Maximum Power Handling225W
Sensitivity88.5 dB @ 1 W / 1 m

General Specs

Impedance4 Ohms
Woofer Size5.25"
Manufacturer Warranty1 Year
RMS Power Handling (Watts)65
Peak Power Rating (Watts)225
Shallow MountNo

JL Audio® 5.25" Convertible Component Woofer

Model #: C3-525cw
136523
Model #: C3-525cw
JL Audio
$99,999.00

Call for Best Price

At a Glance

The C3-525cw is a 5.25-inch (130 mm) component woofer capable of accurate reproduction between 53 Hz and 7 kHz. It features a mineral-filled polypropylene cone and an injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

People also viewed:

Get to know this product.

Sonic character: Clean and Powerful

Sold individually

Specifications

Continuous Power Handling (RMS): 65 W

Peak Music Power: 225 W

Recommended Amplifier Power (RMS): 25 - 150 W / Ch.

System Efficiency: 88.5 dB @ 1 W / 1 m

System Nominal Impedance: 4 Ω

System Frequency Response: 53 Hz - 7 KHz ± 3 dB

Dimensions

Frame Outer Diameter: 5.80 in / 147 mm

Grille Tray Outer Diameter: 6.00 in / 154 mm

Motor Outer Diameter: 3.38 in / 86 mm

Frontal Coaxial Tweeter Protrusion: 0.69 in / 18 mm

Frontal Grille Protrusion: 1.00 in / 25 mm

Mounting Hole Diameter: 4.56 in / 116 mm

Mounting Depth: 2.27 in / 58 mm

Useful Documents
Specifications

General Specs

Impedance4 Ohms
Woofer Size5.25"
Manufacturer Warranty1 Year
RMS Power Handling (Watts)65
Peak Power Rating (Watts)225
Shallow MountNo

Construction

Woofer Composition:Mineral Filled Polypropylene

Specifications

Maximum Power Handling:225W
Sensitivity:88.5 dB @ 1 W / 1 m
