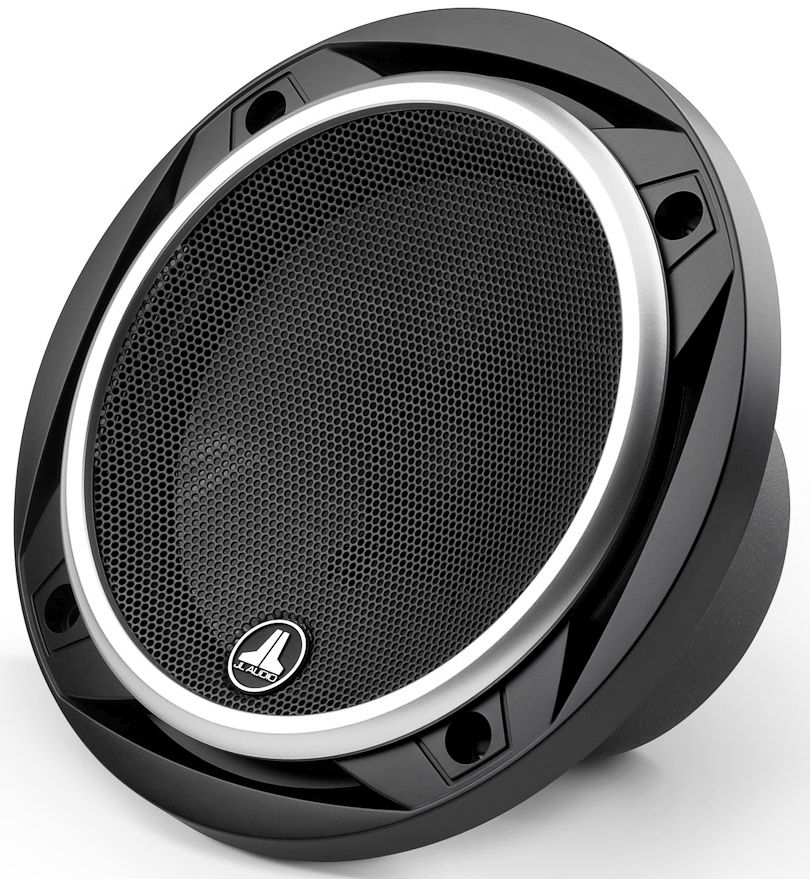

JL Audio® 5.25" Component Woofer


Model #:

C2-525cw

Model #: C2-525cw
136629
JL Audio
$149.99

At a Glance

JL Audio® 5.25" Component Woofer with mineral-filled polypropylene cone and stamped steel basketRead More

Available in Store Only
$149.99

People also viewed:

Get to know this product.

Product Overview

Product Overview

The C2-525cw is a 5.25-inch (130 mm) component woofer capable of accurate reproduction between 63 Hz and 8 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

A grille is included, consisting of a black grille tray and a black steel mesh grille

Sonic character: Clean and Powerful

Sold individually

Specifications

Continuous Power Handling (RMS): 60 W

Peak Music Power: 150 W

Recommended Amplifier Power (RMS): 15 - 100 W / Ch.

System Efficiency: 89.0 dB @ 1 W / 1 m

System Nominal Impedance: 4 O

System Frequency Response: 63 Hz - 8 KHz ± 3 dB

Dimensions

Frame Outer Diameter: 5.20 in / 132 mm

Grille Tray Outer Diameter: 6.01 in / 153 mm

Motor Outer Diameter: 2.76 in / 70 mm

Frontal Grille Protrusion: 0.72 in / 18 mm

Mounting Hole Diameter: 4.56 in / 116 mm

Mounting Depth: 2.50 in / 64 mm

Useful Documents
Specifications

General Specs

Woofer Size5.25"
Manufacturer Warranty1 Year
RMS Power Handling (Watts)60
Peak Power Rating (Watts)150
Subwoofer SizeUp to 8"
Shallow MountNo

Construction

Woofer Composition:Mineral Filled Polypropylene

Specifications

Maximum Power Handling:150W
Sensitivity:89.0 dB @ 1 W / 1 m
