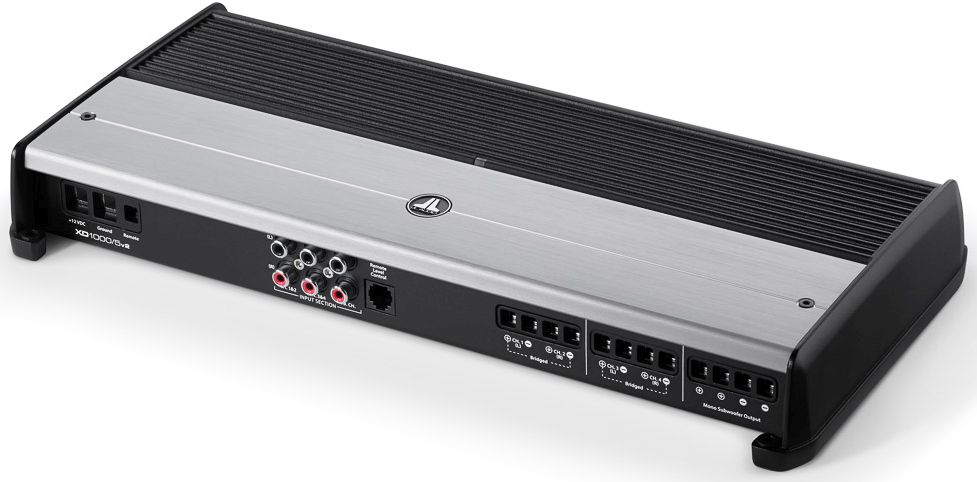

The XD1000/5v2 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 O), while also delivering a stout 600 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching amplifier design.
The XD1000/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.
The XD1000/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
|Amplifier Class||Class D|
|Amplifier Output (Watts)||1000|
|Impedance||2 - 4 Ohms|
|Manufacturer Warranty||2 Year|
|RMS Power Handling (Watts)||600|
|Speaker Level Input||No|
|Number Of Outputs||6|
|Minimum Impedance Unbridged||2 Ohm|
|Number Of Inputs||3|
