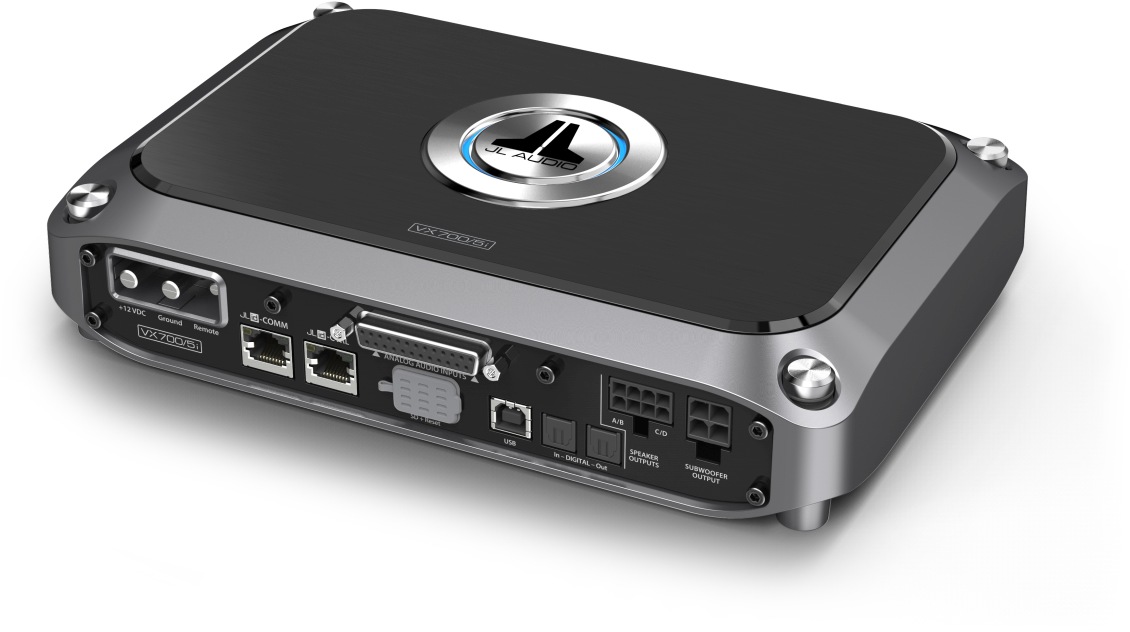

JL Audio® 5 Ch 700 W Class D System Amplifier with Integrated DSP

Model #: VX700/5i
460306
JL Audio
At a Glance
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
Call for Best Price
$99,999.00Save $NaN

Get to know this product.

5-Channel Class D System Amplifier with Integrated DSP, 75 W x 4 @ 4 O + 300 W x 1 @ 2 O - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Harness, 6 ft A/B USB Cable

  • Frequency Response: 12 Hz - 24 kHz (+0, -1dB)
  • THD+N @ Rated Power: <1% @ 2 O per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
Useful Documents
Specifications

Misc. Specs

ColorBlack
Depth (in.)6.62
Width (in.)9.81
Height (in.)2.12
Amplifier ClassClass D
Amplifier Output (Watts)700
Bluetooth CapableNo
Amplifier Channels5
Impedance2 - 4 Ohms
Manufacturer Warranty2 Years
RMS Power Handling (Watts)300
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputNo
Number Of Outputs3
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
Product Weight (lbs.)5.6
WarningProposition 65 Warning for California Residents
