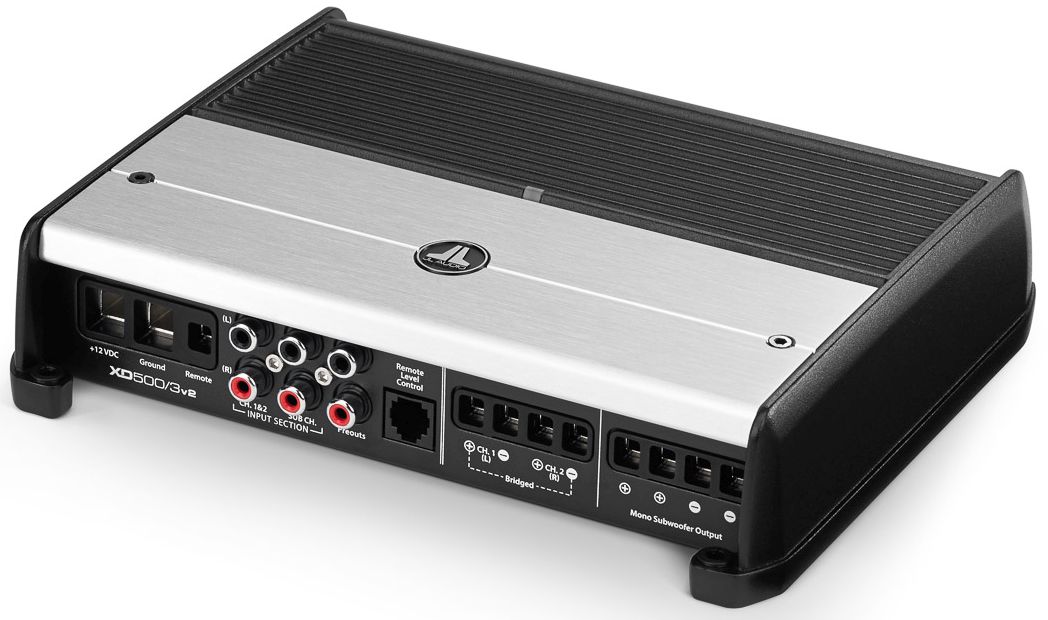

JL Audio® 3 Channel Class D System Amplifier-XD500/3v2

Model #: XD500/3v2
459341
JL Audio
At a Glance

This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the XD500/3v2, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

Call for Best Price
$99,999.00Save

Get to know this product.

3-Channel Class D System Amplifier, 75 W x 2 @ 4 O + 300 W x 1 @ 2 O - 14.4V

This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the XD500/3v2, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

The XD500/3v2 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz.

The XD500/3v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Rated Continuous (RMS) Power @ 14.4 V

  • Main Channels @ 4 O: 75 W RMS x 2
  • Main Channels @ 2 O: 100 W RMS x 2
  • Main Channels - Bridged @ 4O: 200 W RMS x 1
Useful Documents
Specifications

Misc. Specs

ColorBlack
Depth (in.)7.09
Width (in.)8.52
Height (in.)2.05
Preamp Outputs1
Amplifier ClassClass D
Bluetooth CapableNo
Amplifier Channels3
Rms Power Handling300
Manufacturer Warranty2 Year
Impedance2 - 4 Ohms
Water ResistantNo
Speaker Level InputNo
Shallow MountNo
Digital InputNo
Number Of Outputs4
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
Product Weight4.8
