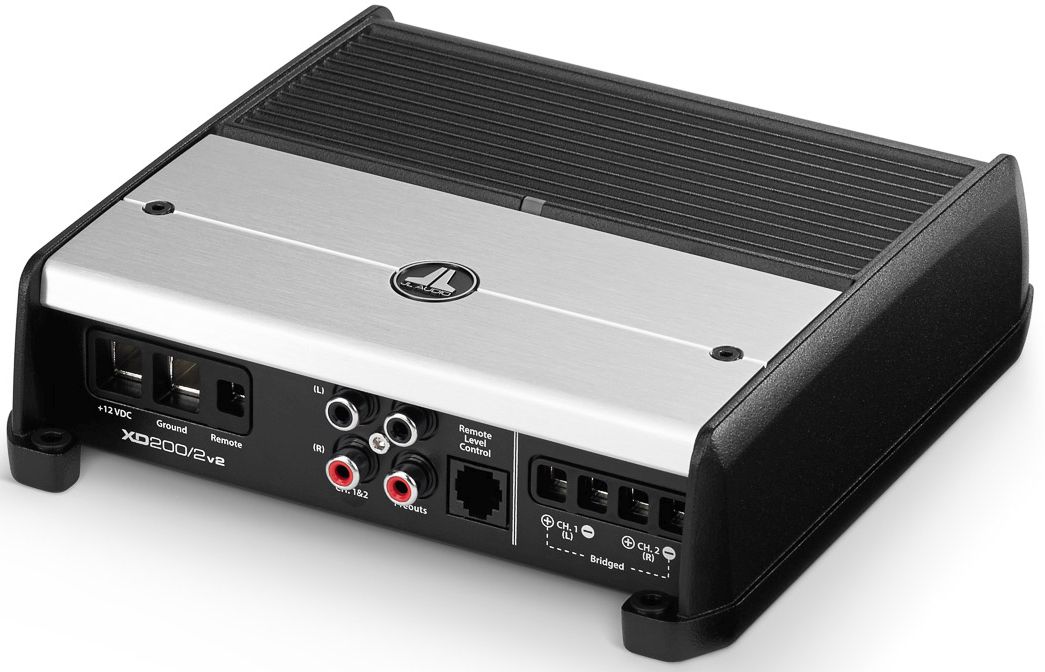

JL Audio® 2 Channel Class D Full-Range Amplifier

Product Overview

2-Channel Class D Full-Range Amplifier, 100 W x 2 @ 2 O / 75 W x 2 @ 4 O - 14.4V

This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

The XD200/2v2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.

The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

@ 4 O: 75 W RMS x 2

@ 2 O: 100 W RMS x 2

Bridged @ 4O: 200 W RMS x 1
