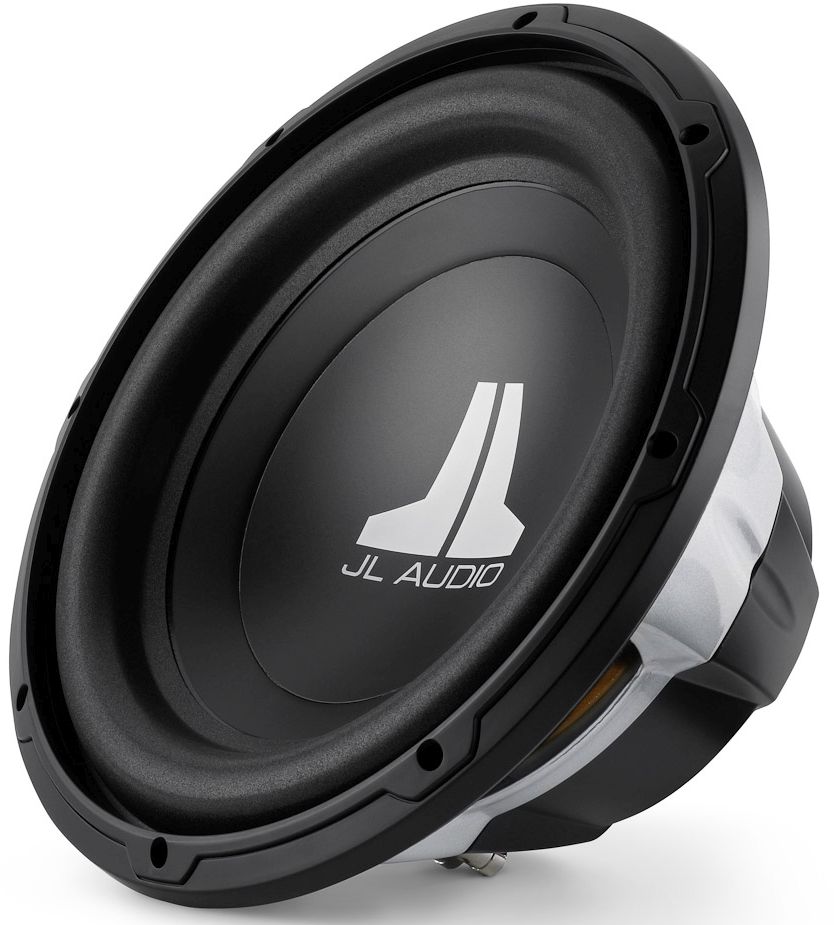

JL Audio® 12" Subwoofer Driver


Model #:

12W0v3-4

Model #: 12W0v3-4
136248
JL Audio
$149.99

At a Glance

The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity.Read More

Available in Store Only
$149.99

Get to know this product.

Product Overview

Product Overview

W0v3 12-inch Subwoofer (300 W, 4 O)

The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.

The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Continuous Power Handling (RMS): 300 W

Recommended Amplifier Power (RMS): 75 - 300 W

Nominal Impedance (Znom): 4 O

Useful Documents
Specifications

General Specs

Woofer Size12"
Product Weight (lbs.)8.11
Manufacturer Warranty1 Year
RMS Power Handling (Watts)300
Peak Power Rating (Watts)400
Subwoofer Size12"
Shallow MountNo

Specifications

Sensitivity:85.64 dB SPL
