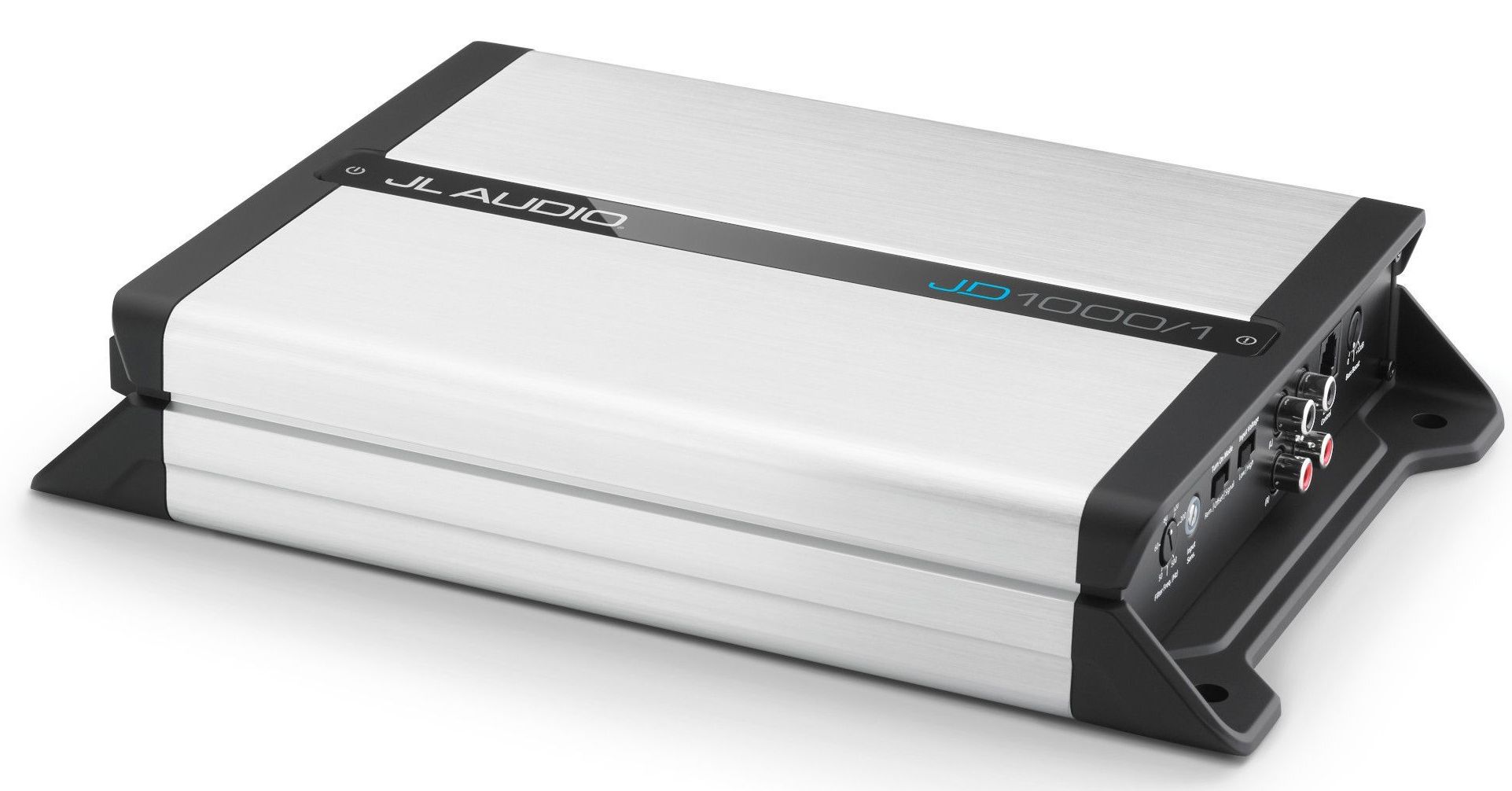

JL Audio® 1000 W Monoblock Class D Subwoofer Amplifier-JD1000/1

Model #: JD1000/1

At a Glance

Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 O / 600 W x 1 @ 4 O - 14.4V

Designed to produce a serious 1000 watts into 2 ohms (14.4V, 1% THD), the JD1000/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

The JD1000/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The JD1000/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.

• Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
• THD+N @ Rated Power: <1% @ 2 O per Ch.
• Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
