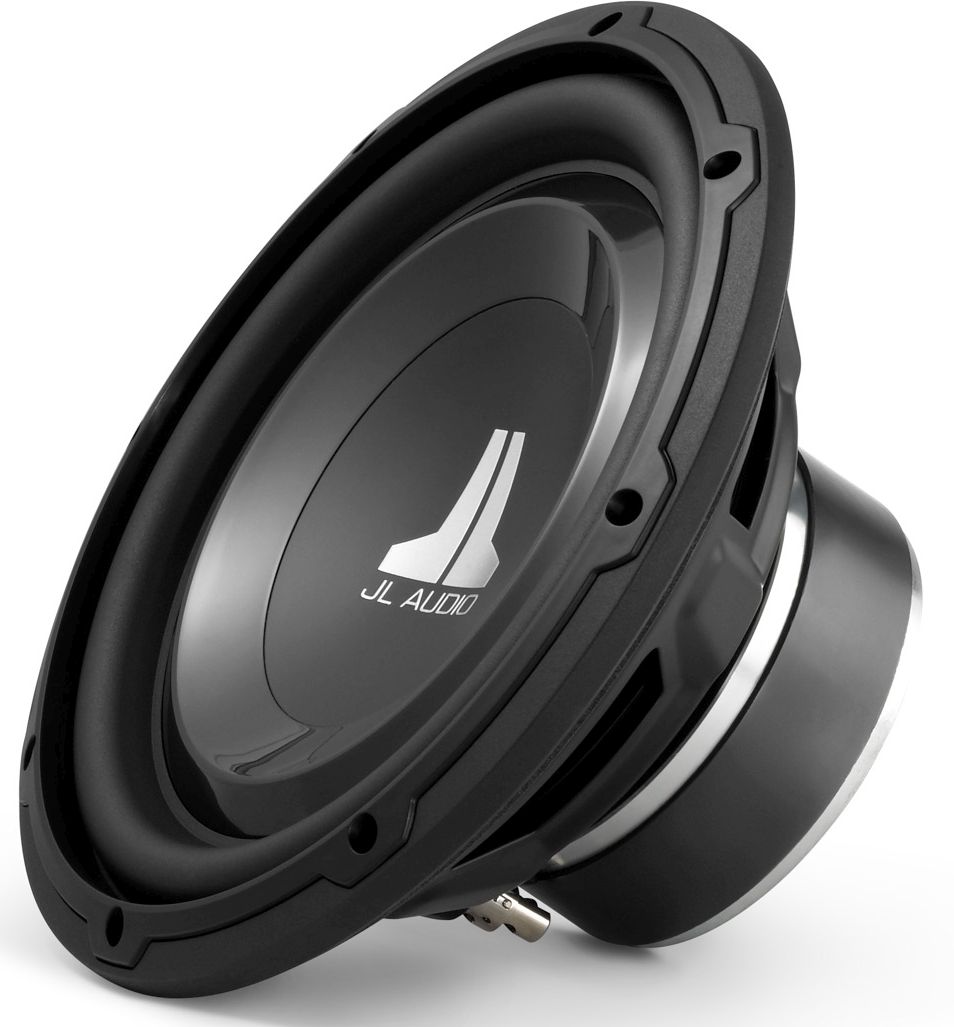

JL Audio® 10" Subwoofer Driver

Product Overview

W1v3 10-inch Subwoofer (300 W, 4 O)

The 10W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 10W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Continuous Power Handling (RMS): 300 W

Recommended Amplifier Power (RMS): 75 - 300 W

Nominal Impedance (Znom): 4 O

Useful Documents
