The smoothness and transparency of a high-end silk dome tweeter combines with top-flight component mid-range driver and woofer performance to create a loudspeaker system with exceptional refinement and dynamic capability.
The C5-653 system features 6.5-inch (165 mm) component woofers with Kurt Müller cones and suspensions and die-cast alloy baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 4-inch (100 mm) midrange drivers also benefit from Kurt Müller cones and suspensions and are built on a stamped steel chassis with removable mounting tabs. This allows them to be installed in a variety of mounting applications.

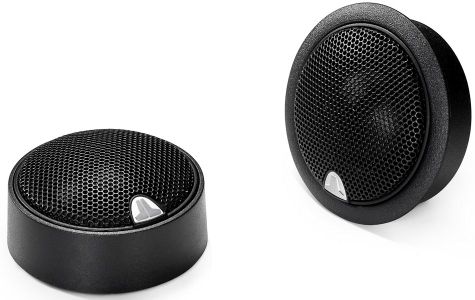

The C5 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. The flush-mount fixtures feature our RSR (Ratcheting Swivel Rotation) mechanism to allow precise tweeter aiming after installation.
C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer and mid-range speaker grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
|Continuous Power Handling (RMS)||75 W|
|Peak Music Power||225 W|
|Recommended Amplifier Power (RMS)||25 - 150 W / Ch.|
|System Efficiency||90.0 dB @ 1 W / 1 m|
|System Nominal Impedance||4 O|
|System Frequency Response||4 kHz - 25 KHz ± 3 dB|
|With supplied crossover||Yes|
|Flush Mount Fixture Diameter (A1)||2.12 in / 54 mm|
|Surface Mount Fixture Diameter (A2)||1.93 in / 49 mm|
|Flush Mount Mounting Hole Diameter (B)||1.875 in / 48 mm|
|Flush Mount Mounting Depth (C)||0.71 in / 18.0 mm|
|Flush Mount Tweeter Frontal Protrusion (D1)||0.32 in / 8 mm|
|Surface Mount Tweeter Frontal Protrusion (D2)||0.95 in / 24 mm|
|Manufacturer Warranty||1 Year|
|RMS Power Handling (Watts)||75|
